AIMING &
ILLUMINATION LASERS
RAIL

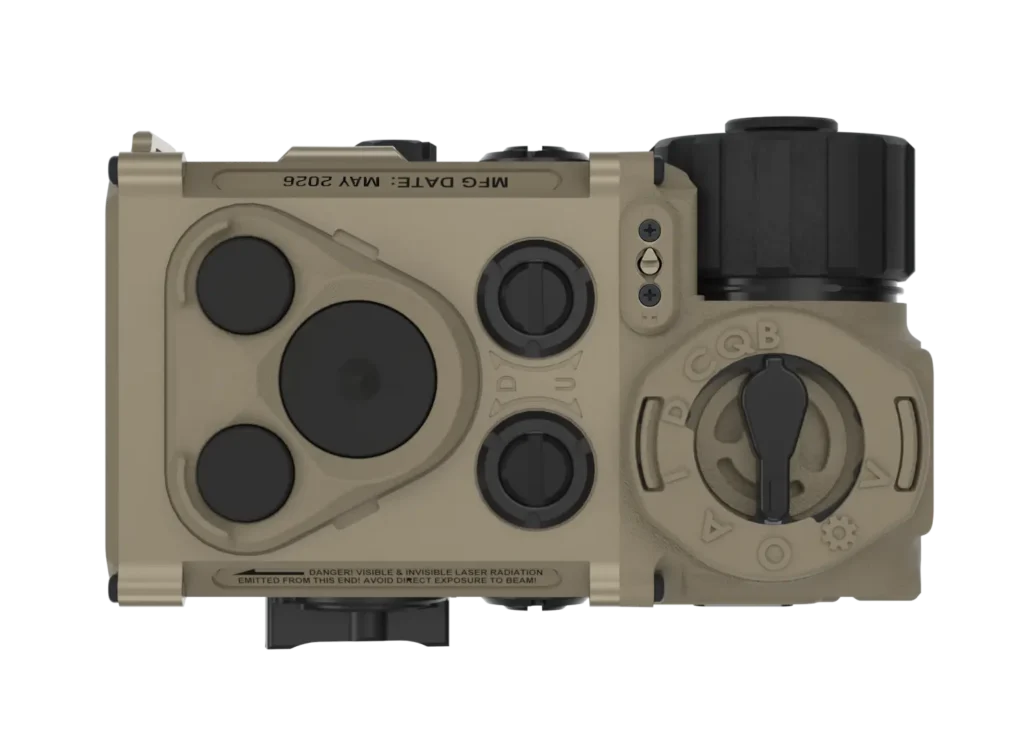

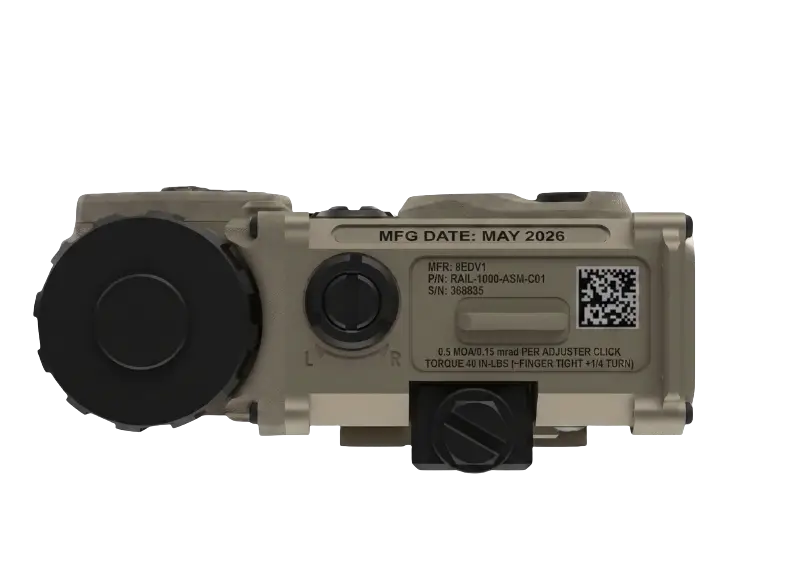

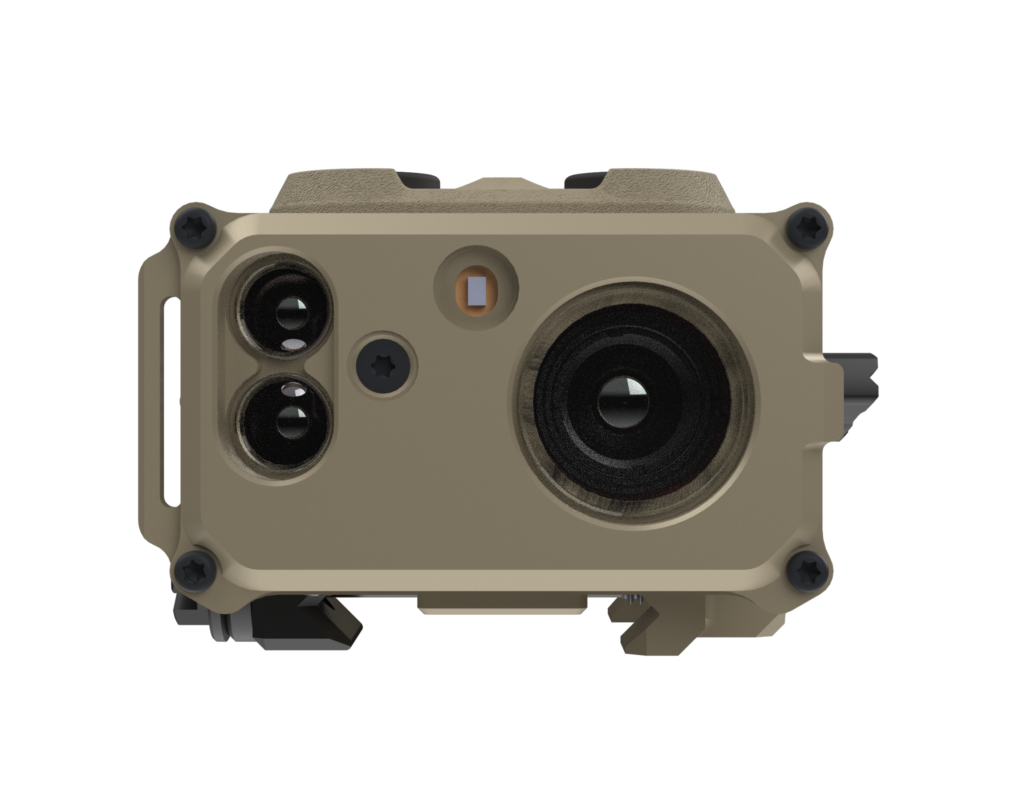

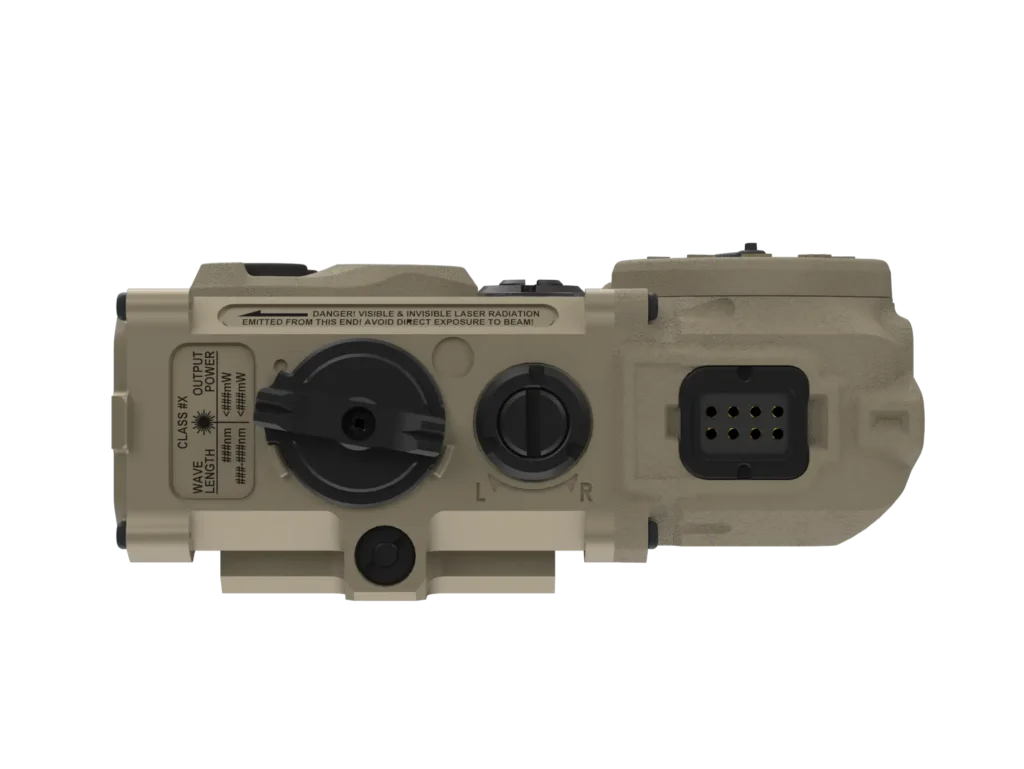

Rail-Mounted Aiming & Illumination Laser
Product Overview
The Rail-mounted Aiming and Illumination Laser (RAIL) provides visible and IR targeting capability in a compact SWaP-optimized design. brings a weapon-mounted aiming and illumination capability to the user in an exceptionally small form factor. The RAIL contains an integrated visible aiming laser (Green or Red), NIR aiming laser, NIR illumination laser (VCSEL), and 180° NIR wide-angle LED illuminator for confined spaces or Close Quarters Battle (CQB). The NIR illumination laser has a quick adjust beam divergence capability and is independently adjustable from the co-aligned aiming lasers. All lasers have user-adjustable power settings to support various mission needs. The system is powered by a single CR123 battery and mounts to a standard MIL-STD-1913 rail.
User Benefits
Ultra-Lightweight & Balanced: Weighs under 6 oz to maintain weapon balance in high-mobility and CQB environments.
All-in-One Laser Capability: Combines red or green VIS laser, IR aim laser, IR illuminator, and wide-angle NIR LED flood in one compact unit.
Quick-Adjust Laser Intensity: Instantly adapt aiming or illumination power to match distance or lighting conditions.
180° Wide-Angle IR Flood: Integrated NIR LED provides full-scene visibility for confined spaces and room entries without risk of blooming goggles.
Configurable Buttons: Supports laser power adjustment, visible override and/or CQB override for instinctive activation under pressure and designed for confident manipulation with gloves.
Independent IR Illuminator Tuning: Adjust beam divergence and location without affecting aiming lasers.
Fast-Access Controls: Easy to use buttons and rotary dial ensure quick operation under stress.
Expandable Mode Selector: Seven-position dial includes open slots for future feature upgrades.
OLED Display with Dimming: Manual brightness control and auto-dimming sensor for day/night adaptation. Display can be disabled during operation.
Universal Mount Compatibility: MIL-STD-1913 rail grabber secures tightly to standard weapon platforms.
Simple Power Source: Runs on a single CR123A battery for reliable field operation.
| RAIL Features | |
|---|---|
| Weight | With Battery: <6oz (170g) |
| Dimensions | L: 3.7” (93.98mm) with lens cover deployed W: 2.4” (60.96mm) with lens cover stowed H: 1.4” (35.56mm) above rail |
| Power | Single CR123 Battery |
| Mounting Interface | MIL-STD-1913 Rail Grabber |
| Visible Pointer | |
| Output Power | 4mW Low Power (Class 3R) 25mW High Power (Green, Class 3B) 38mW High Power (Red, Class 3B) |
| Divergence | 0.3mrad |
| Wavelength | 520nm (Green) OR 640nm (Red) |
| NIR Pointer | |
| Output Power | 0.4mW Low Power (Class 1) 25mW High Power (Class 3B) |
| Divergence | 0.3mrad |
| Wavelength | 830nm |
| NIR Illuminator | |
| Output Power | 7mW Low Power (Class 1) >135mW High Power (Class 3B) |
| Divergence | ~15-300 mrad |
| Wavelength | 850nm |
| NIR Illuminator LED | |
| Output Power | 35mW |
| Divergence | 180° Wide Angle |
| Wavelength | 850nm |
Low Power Mode
High Power Mode
Dual Mode (Pointer + Illuminator)
CQB & Aim Laser
RAIL-C
Rail-Mounted Aiming & Illumination Laser - Commercial
Product Overview
The Rail-Mounted Aiming/Illumination Laser – Commercial (RAIL-c) brings a
weapon-mounted aiming and illumination capability to the user in an
exceptionally small form factor. The RAIL-c contains an integrated visible aiming
laser (Green or Red), NIR aiming laser, NIR illumination laser (VCSEL), and 180°
NIR wide-angle LED illuminator for confined spaces or Close Quarters Battle
(CQB). The NIR illumination laser has a quick-adjust beam divergence capability
and is independently adjustable from the co-aligned aiming lasers. The system is
powered by a single CR123 battery and mountable to a standard MIL-STD-1913
rail.
User Benefits
Ultra-Lightweight & Balanced: Weighs under 6 oz to maintain weapon
balance in high-mobility and CQB environments.
All-in-One Laser Capability: Combines red or green VIS laser, IR aim laser, IR
illuminator, and wide-angle NIR LED flood in one compact unit.
180° Wide-Angle IR Flood: Integrated NIR LED provides full-scene visibility for
confined spaces and room entries.
Personalized Laser Control: VIS and CQB override buttons are user
configurable for instinctive activation under pressure.
Independent IR Illuminator Tuning: Adjust beam divergence and location
without affecting aiming lasers.
Fast-Access Controls: Easy to use buttons and rotary dial ensure quick
operation under stress.
Expandable Mode Selector: Seven-position dial includes open slots for future
feature upgrades.
OLED Display with Dimming: Manual brightness control and auto-dimming
sensor for day/night adaptation. Display can be disabled during operation.
Built for Glove Use: Aptly designed buttons for confident manipulation with
gloves.
Mounting: MIL-STD-1913 rail interface to mount to a wide variety of weapon
platforms.
Simple Power Source: Runs on a single CR123A battery for reliable field
operation.
| RAIL-C Features | |
| Weight | With Battery < 6 oz. (< 170g) |
| Max Dimensions | L: 3.7" (93.98mm) with lens cover deployed W: 2.4" (60.96mm) with lens cover stowed H: 1.4" (35.56mm) above rail |
| Power | Single CR123A Battery |
| Mounting Interface | MIL-STD-1913 Rail Grabber |
| Visible Pointer | |
| Output Power | 4mW (Class 3R) |
| Divergence | 0.3mrad |
| Wavelength | 520nm (Green) OR 640nm (Red) |
| NIR Pointer | |
| Output Power | 0.4mW (Class 1) |
| Divergence | 0.3mrad |
| Wavelength | 830nm |
| NIR Illuminator | |
| Output Power | 7mW (Class 1) |
| Divergence | ~15-300mrad |
| Wavelength | 850nm |
| NIR Illuminator LED | |
| Output Power | 35mW |
| Divergence | 180° |
| Wavelength | 850nm |
