WEAPON-MOUNTED LASER
RANGEFINDER SYSTEMS

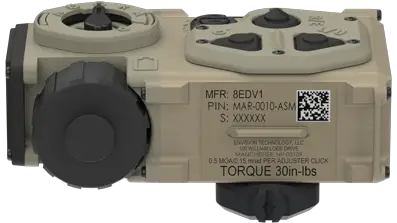

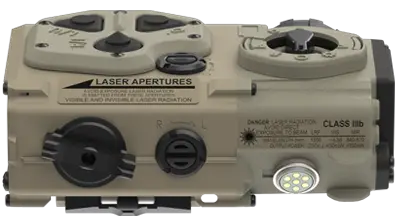

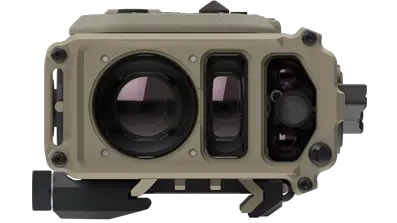

MARS
Miniature Advanced Rangefinder System
Proudly the Smallest and Lightest LRF System in its Class. The Miniature Advanced Rangefinder System (MARS) brings precision weapon-mounted laser rangefinding capability to the user in an exceptionally small form factor. With an integrated Applied Ballistics solver, visible and Near Infrared (NIR) pointers, NIR illuminator, and Bluetooth interface to external peripherals such as the Kestrel weather meter, the MARS delivers >2,000m range performance in a compact package weighing less than 8 oz.
User Benefits
Ultra-compact with full-power capability: Weighs under 8 oz and ranges targets >2,000m with a 1550nm laser.
Built-in Applied Ballistics® solver: Calculates real-time Ballistic Solutions using gun profiles and environmental data.
Environmental Sensors: Integrated temperature and pressure sensors to eliminate guesswork and increases long-range lethality.
Multiple Ranging Modes: Switch between Speed, Precision/Long Range, or Continuous Scan Modes.
First / Last / Best return logic: Confirms target in cluttered environments.
Haptic feedback: Vibration feedback to know when you’re on target
Integrated Bluetooth: 2-way Bluetooth for integration with external devices like smart phones, digital wseapon sights, or Kestrel weather meters.

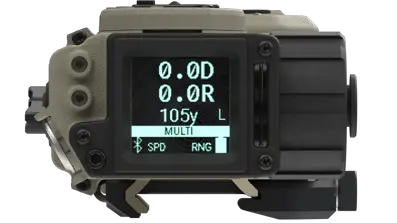

OLED display: Under settings, screen will rotate to remain upright for any rail-mounted configuration.
Adjustable laser power: Configurable VIS and IR output based on mission needs.
Glove-friendly 3-button interface: Simple, intuitive control under pressure.

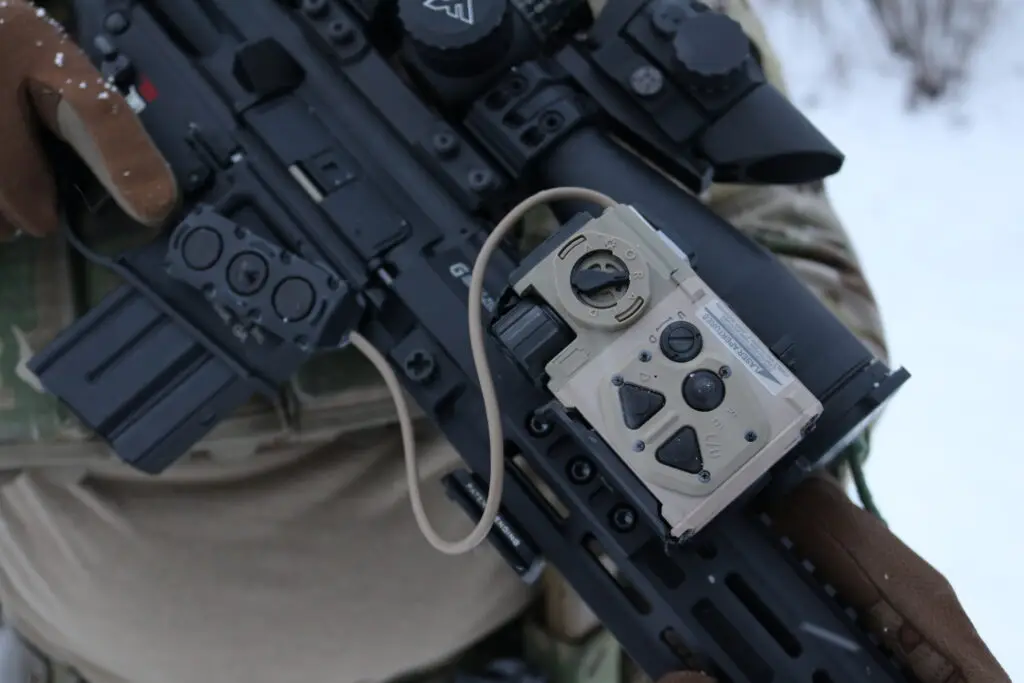

Remote switch compatible: Available in 12″ and 20″ cable options.
Built for combat: Waterproof up to 1meter, recoil-rated, and reliable from -4°F (-20°C) to + 140°F (60°C).

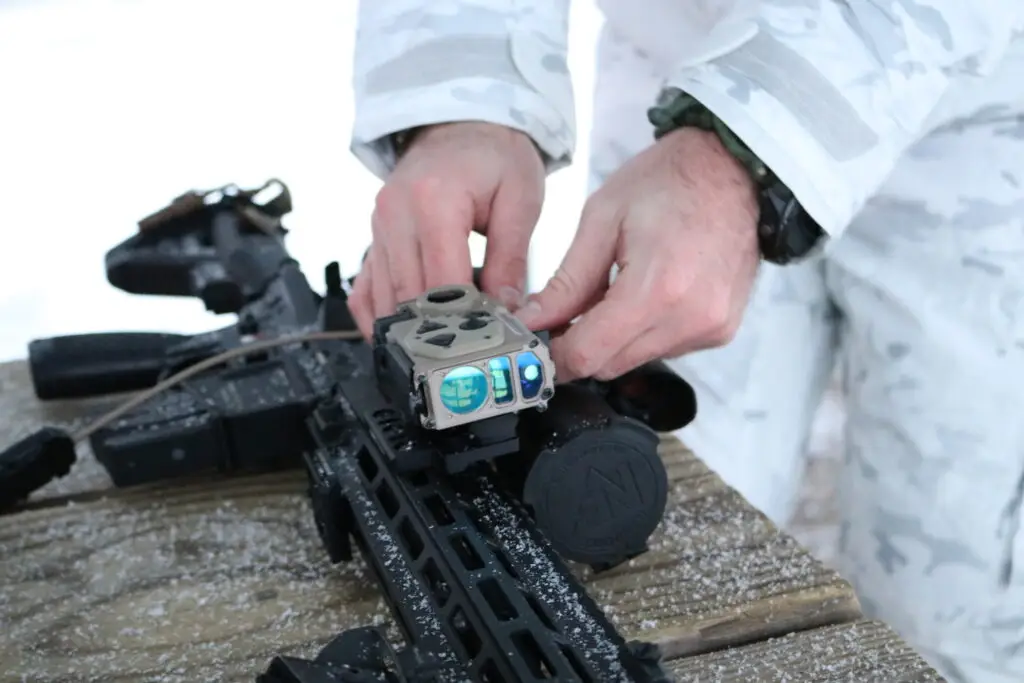

Mounting: MIL-STD-1913 rail interface to mount to a wide variety of weapon platforms.
Units of Measure: Imperial, Metric or Mixed Units
Single CR123A Powered: >2,000 ranges per battery.
| MARS Specs | |
|---|---|
| LRF | ~1550nm, Class 1 >1,500m on 10% reflective man-size target >2,000m on 30% reflective NATO target |
| Weight | Without Battery: 6.6oz (187g) With Battery: 7.2oz (204g) |
| Dimensions | L: 3.64” (92.4mm) with lens cover deployed W: 2.6” (68.6mm) with lens cover stowed H: 1.4" above rail (35mm) above rail |
| Power | Single CR123 Battery |

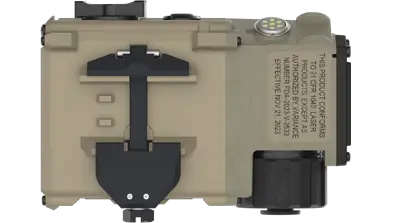

| Mounting Interface | MIL-STD-1913 Rail Grabber |
| Visible Pointer | |
| Output Power | 3.5mW (low) Class 3R / 38mW (high) Class 3B, +/-20% |
| Divergence | 0.5mR (+/- 0.3mR) |
| Wavelength | ~640nm (at 20C) |
| NIR Pointer | |
| Output Power | 0.45mW (low) Class 1 / 25mW (high) Class 3B, +/-20% |
| Divergence | 0.5mR (+/- 0.3mR) |
| Wavelength | ~850nm (at 20C) |
| NIR Illuminator | |
| Output Power | 5.0mW (low) Class 1 / 105mW (high) Class 3B, +/-20% |
| Divergence | 1 – 6 degrees (+/- 20%) |
| Wavelength | ~860nm (at 20C) |
| User Interfaces | Three-button remote, rotary switch |
| Wireless Interface | 2 Way Bluetooth communication |
| Ballistic Computer | Applied Ballistics, Integrated |
| Modes | Speed, Precision, Scan (rapid) |

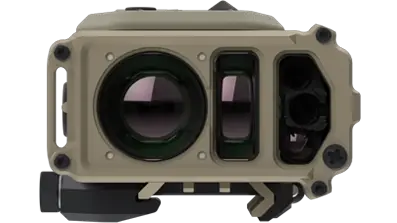

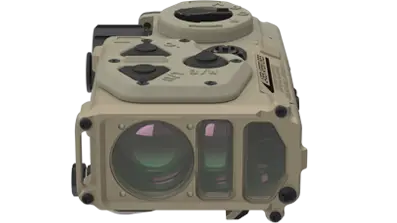

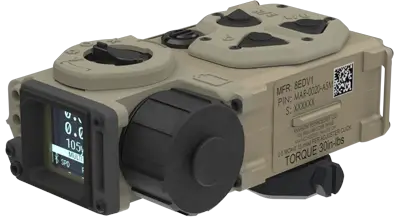

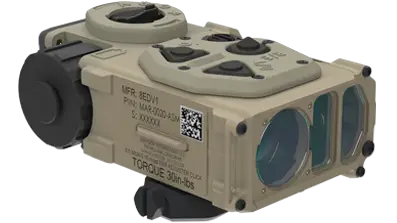

MARS-L
Miniature Advanced Rangefinder System - Light
Product Overview
The Miniature Advanced Rangefinder System – Light (MARS-L) brings precision weapon-mounted laser rangefinding capability to the user in an exceptionally small form factor. With an integrated Applied Ballistics solver, visible pointer, and Bluetooth interface to external peripherals such as the Kestrel weather meter, the MARS delivers >2,000m range performance in an affordable package weighing less than 8 oz.
User Benefits
Ultra-compact with full-power capability: Weighs under 8 oz and ranges targets >2,000m with a 1550nm laser.
Built-in Applied Ballistics® solver: Calculates real-time Ballistic Solutions using gun profiles and environmental data.
Environmental Sensors: Integrated temperature and pressure sensors to eliminate guesswork and increases long-range lethality.
Multiple Ranging Modes: Switch between Speed, Precision/Long Range, or Continuous Scan Modes.
First / Last / Best return logic: Confirms target in cluttered environments.
Haptic feedback: Vibration confirms ranging without needing to look away.

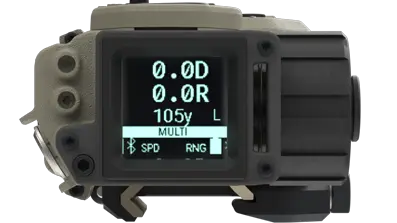

OLED display: Under settings, screen will rotate to remain upright for any rail-mounted configuration.
Adjustable laser power: Configurable VIS and IR output based on mission needs.
Glove-friendly 3-button interface: Simple, intuitive control under pressure.
Remote switch compatible: Available in 12″ and 20″ cable options.
Built for combat: Waterproof up to 1meter, recoil-rated, and reliable from -4°F (-20°C) to + 140°F (60°C).
CR123A powered: >2,000 ranges per battery.
| MARS-L Features | |
|---|---|
| LRF | 1550nm, Class 1 >2,000m on 30% reflective man-size target >2,000m on 30% reflective NATO target |
| Weight | With Battery: <8oz (226g) |
| Dimensions | L: 3.9” (99.1mm) W: 2.6” (68.6mm) H: 1.4" above rail (35mm) |
| Power | Single CR123 Battery |
| Mounting Interface | MIL-STD-1913 Rail Grabber |
| Wireless Interface | 2 way Bluetooth for integration with devices like smartphones, digital weapon sights, or a Kestrel weather meter |
| Ballistic Computer | Applied Ballistics |
| Visible Pointer | |
| Output Power | 3.0mW Low Power (Class 3R) / 38mW High Power (Class 3B) |
| Divergence | 0.3mrad |
| Wavelength | 640nm |
MARSc
Miniature Advanced Rangefinder System - Commercial
Product Overview
The Miniature Advanced Rangefinder System Commercial (MARSc) is the low-power offering within the MARS system, providing users with precision, weapon-mounted laser rangefinding in an exceptionally compact form factor. Equipped with an integrated Applied Ballistics solver, visible pointer, and Bluetooth connectivity to external peripherals such as the Kestrel weather meter, the MARS delivers over 2,000 meters of range performance in an affordable package weighing less than 8 oz.
User Benefits
Ultra-compact with full-power capability: Weighs under 8 oz and ranges targets >2,000m with a 1550nm laser.
Built-in Applied Ballistics® solver: Calculates real-time Ballistic Solutions using gun profiles and environmental data.
Environmental Sensors: Integrated temperature and pressure sensors to eliminate guesswork and increases long-range lethality.
Multiple Ranging Modes: Switch between Speed, Precision/Long Range, or Continuous Scan Modes.
First / Last / Best return logic: Confirms target in cluttered environments.
Haptic feedback: Vibration confirms ranging without needing to look away.
OLED display: Under settings, screen will rotate to remain upright for any rail-mounted configuration.
Adjustable laser power: Configurable VIS and IR output based on mission needs.
Glove-friendly 3-button interface: Simple, intuitive control under pressure.
Remote switch compatible: Available in 12″ and 20″ cable options.
Built for combat: Waterproof up to 1meter, recoil-rated, and reliable from -4°F (-20°C) to + 140°F (60°C).
CR123A powered: >2,000 ranges per battery.
| MARSc Features | |
|---|---|
| LRF | 1550nm, Class 1 >2,000m on 30% reflective man-size target >3,000m on 30% reflective NATO target |
| Weight | With Battery: <8oz (226g) |
| Dimensions | L: 3.9” (99.1mm) W: 2.6” (68.6mm) H: 1.4" above rail (35mm) |
| Power | Single CR123 Battery |
| Mounting Interface | MIL-STD-1913 Rail Grabber |
| Wireless Interface | 2 way Bluetooth for integration with devices like smartphones, digital weapon sights, or a Kestrel weather meter |
| Ballistic Computer | Applied Ballistics |
| Visible Pointer | |
| Output Power | 3.0mW Low Power - Class 3R |
| Divergence | 0.3mrad |
| Wavelength | 640nm |
| NIR Pointer | |
| Output Power | 0.3mW Low Power (Class 1) |
| Divergence | 0.3mrad |
| Wavelength | 850nm |
| NIR Illuminator | |
| Output Power | 4.0mW Low Power (Class 1) |
| Divergence | 1-6 degrees |
| Wavelength | 860nm |
