AIMING &
ILLUMINATION LASERS
RAIL

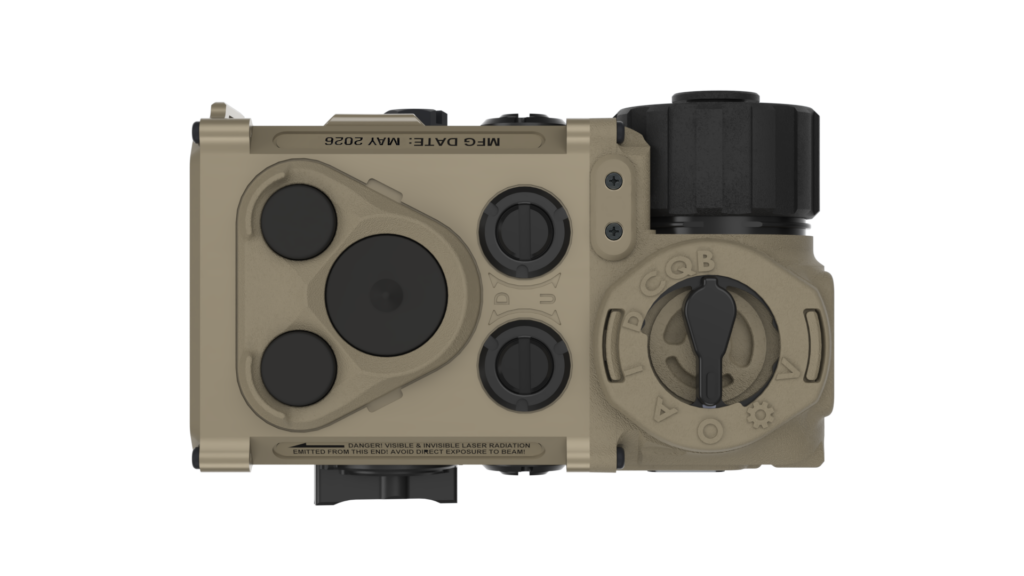

Rail-Mounted Aiming & Illumination Laser





Product Overview
The RAIL rail mounted aiming and illumination laser provides visible and IR targeting capability in a compact SWaP-optimized design. brings a weapon-mounted aiming and illumination capability to the user in an exceptionally small form factor. The RAIL contains an integrated visible aiming laser (Green or Red), NIR aiming laser, NIR illumination laser (VCSEL), and 180° NIR wide-angle LED illuminator for confined spaces or Close Quarters Battle (CQB). The NIR illumination laser has a quick adjust beam divergence capability and is independently adjustable from the co-aligned aiming lasers. All lasers have user-adjustable power settings to support various mission needs. The system is powered by a single CR123 battery and mounts to a standard MIL-STD-1913 rail.
User Benefits
Compact Rail Mounted Aiming and Illumination Laser: Weighs under 6 oz to maintain weapon balance in high-mobility and CQB environments.
All-in-One Laser Capability: Combines red or green VIS laser, IR aim laser, IR illuminator, and wide-angle NIR LED flood in one compact unit.
Quick-Adjust Laser Intensity: Instantly adapt aiming or illumination power to match distance or lighting conditions.
180° Wide-Angle IR Flood: Integrated NIR LED provides full-scene visibility for confined spaces and room entries without risk of blooming goggles.
Configurable Buttons: Supports laser power adjustment, visible override and/or CQB override for instinctive activation under pressure and designed for confident manipulation with gloves.
Independent IR Illuminator Tuning: Adjust beam divergence and location without affecting aiming lasers.
Fast-Access Controls: Easy to use buttons and rotary dial ensure quick operation under stress.
Expandable Mode Selector: Seven-position dial includes open slots for future feature upgrades.
OLED Display with Dimming: Manual brightness control and auto-dimming sensor for day/night adaptation. Display can be disabled during operation.
Universal Mount Compatibility: MIL-STD-1913 rail grabber secures tightly to standard weapon platforms.
Simple Power Source: Runs on a single CR123A battery for reliable field operation.
| RAIL Features | |
|---|---|
| Weight | With Battery: <6oz (170g) |
| Dimensions | L: 3.7” (93.98mm) with lens cover deployed W: 2.4” (60.96mm) with lens cover stowed H: 1.4” (35.56mm) above rail |
| Power | Single CR123 Battery |
| Mounting Interface | MIL-STD-1913 Rail Grabber |
| Visible Pointer | |
| Output Power | 4mW Low Power (Class 3R) 25mW High Power (Green, Class 3B) 38mW High Power (Red, Class 3B) |
| Divergence | 0.3mrad |
| Wavelength | 520nm (Green) OR 640nm (Red) |
| NIR Pointer | |
| Output Power | 0.4mW Low Power (Class 1) / 25mW High Power (Class 3B) |
| Divergence | 0.3mrad |
| Wavelength | 830nm |
| NIR Illuminator | |
| Output Power | 7mW Low Power (Class 1) >135mW High Power (Class 3B) |
| Divergence | ~15-350 mrad (≈1–20°) |
| Wavelength | 850nm |
| NIR Illuminator LED | |
| Output Power | 35mW |
| Divergence | 180° Wide Angle |
| Wavelength | 850nm |
Low Power Mode
High Power Mode
Dual Mode (Pointer + Illuminator)
